fuse box pic request!

[Rusty dan]

Peeps,

Has anybody got a picture of back side of the fuse box for an inj rocco where the plugs and connections fit? its k-jet management?

I am trying to find where the last few connections go (assuming the other 20 connections are right )

Would someone post a few phots of different views of the back so I can see??

Pretty please...

I would phone my helpfull contacts but work are moaning about phone use outside of work hours! New sim on order lol

Cheers

Rusty

[monzajake]

dude i got a loom and box out of one. so i'll take some photos and mail them to you soon as

[Rusty dan]

good man, take it you are plugging bits in and taking pics lol

[monzajake]

sorry for delay, been out on the bike.
Here's a couple of the dash loom fitted.
Just going outside to take more pics from the car's fuse box.

[Rusty dan]

thanks mate, have you got the engine loom to add? I have a single brown cable with a red connection and i cant work out where it goes!
Also a single green connection from the engine loom also..

thanks again


also what goes in n,r,p,g,m

I got the 2 5.0 guage red going in 'P'
Rusty

[monzajake]

thanks mate, have you got the engine loom to add? I have a single brown cable with a red connection and i cant work out where it goes!
Also a single green connection from the engine loom also..
Hmm could be coil + for the coil. Does it come in through the bulkhead to the fuse box ?

thanks again


also what goes in n,r,p,g,m

I got the 2 5.0 guage red going in 'P'
Rusty

"Id say that was a live, altho brown is earth usally" strange why you have a red connection ! Red = live.

Hmm could be coil + for the coil. Does it come in through the bulkhead to the fuse box ?

Got some photo's of the cars fuse box, dont have a spare engine loom to plug in to the fuse box i got kicking about tho.
Going to have some tucker then i'll up load them

[Rusty dan]

yeah, it comes through to the fuse box, i should really take some pics of the fuse box and what connections are left lol.

Let me know what you got mate and i will post mine up tomorrow night when i am up there if i have not sorted it by then!

cheers dude

[monzajake]

dunno if you can see any of them on these photos bud.
Are you using the mk2 golf 16v loom ?

[Rusty dan]

thanks mate, think I need to see one up close and personal lol It seems you have more connections in the single connectors than I have.

I am using a 1990 Scala Inj engine loom!

There are a few people here locally that I might be able to bug lol

Cheers again mate

Rusty

[Rusty dan]

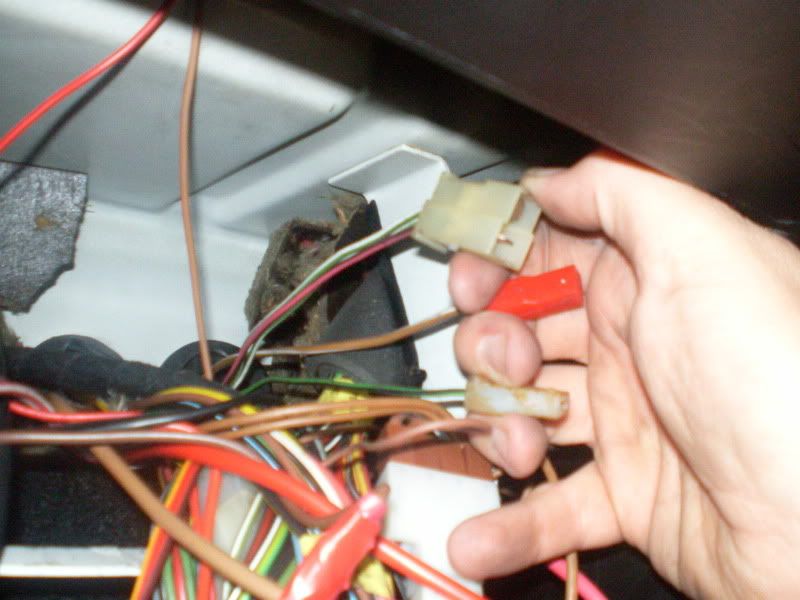

Here is a pic of the connections im missing






please be gentle lol, it aint pretty and it might be wrong

[DannyH]

please remember that i know nothing about anything,

but i've got lots of unconnected plugs alround my '92 scala dx and it still seems to function ok (ish)

still loose some sleep about it on a bad day mind you

they all seem to fit in the right places?

i suspect that some are never fitted 'cos the weren't options on British models etc or were things like electric aerials which were later removed?

plus there's a load of ancillary stuff at the top of the fuse boxes.

[Rusty dan]

thanks danny, thinking about it there are a lot of bits the car did not come with being a GT model, no electric windows, ariels, power steering etc,

I am sure people that know more than us will comment Lets hope I got most of it right

[monzajake]

Leave them unplugged fella. i ve got the 3 wire 2 spade one unplugged on mine.Think ive seen the other one hanging about loose some where.

As for the throttle body air outlet blank it off. Mine is.
