Picture of the near side under dash tray in place.

[markh]

As title please, i have a tray to replace the missing one, but for the life of me cant see how its supposed to fit !! Maybe theres different kinds of tray , or im missing another piece ?

Cheers in advance chaps.

[Ryan]

Probably won't help too much - but it's the best I could find....

[The Autoad]

one screw front left of the tray into captive hole in the A pillar region, one screw on the front right into a black metal bracket and one (maybe two if i recall) through the sticky-out bracket on the back of the shelf into a hole in the firewall.

[1lazza]

Top RHS goes into a bracket off a piece of trim which covers the end of the heater matrix. Often missing or bracket broken off...this is probably the area of confusion.

[markh]

Cheers guys, it makes a bit more sense now, i must be missing the bracket at the matrix end then.

[WayneMK1]

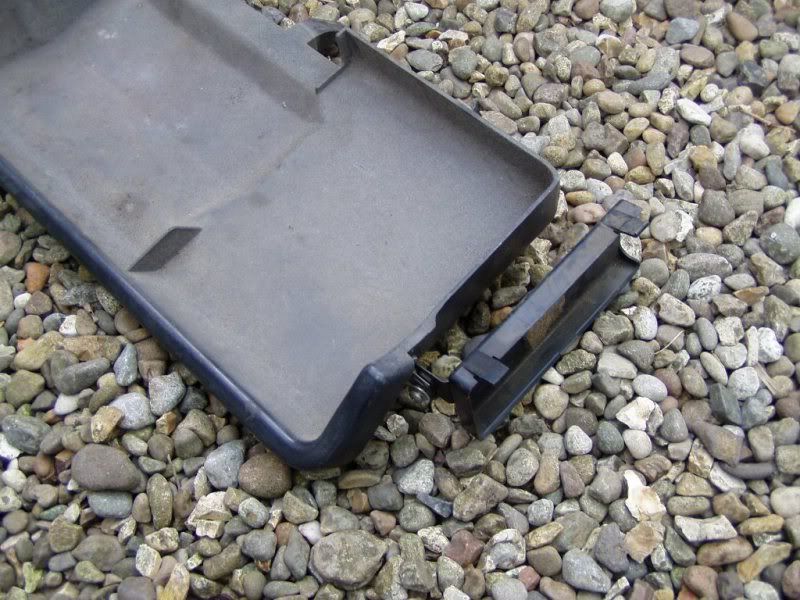

Just putting mine back together and it looks like this - if this is of any help!


Wayne
