Hi all,
Im pretty sure this is more of an engine question....
I have unplugged all of the wires on the left side of my KR engine and cant remember what went where?! Does anyone have a record of what colour wires go to what?
Jason
Which wire where? **SOLVED***
Forum rules
Hints, tips and guides for repair and modification - the FAQ section on the main website is worth checking first for information relating to common faults and technical help. Useful posts and guides will be added to the FAQ http://www.sciroccoregister.co.uk/scirocco-faq
Hints, tips and guides for repair and modification - the FAQ section on the main website is worth checking first for information relating to common faults and technical help. Useful posts and guides will be added to the FAQ http://www.sciroccoregister.co.uk/scirocco-faq
Which wire where? **SOLVED***
Last edited by jbo on Mon Apr 26, 2010 10:33 am, edited 1 time in total.
Re: Which wire where?
Which coloured wires do you have left over?
Would be easier to know than listing every wire on the engine! Especially after a night on beer
Would be easier to know than listing every wire on the engine! Especially after a night on beer
VW Scirocco 16V GTX, Kamei X1 and a half
Re: Which wire where?
It's the three on the left hand side of the engine. All three go into a sender and have a spade connector on the end
Jason
Jason
Re: Which wire where?

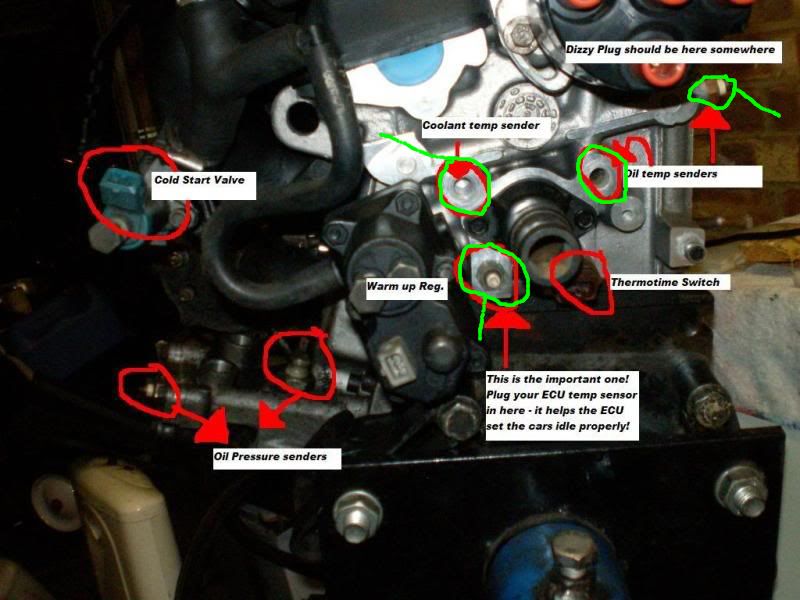

To ease your hangover ive included a picture with big green circles on! ha
If anyone could have a quick look and let me know what colour is going where it would be huuugely appreciated!
Jason
If anyone could have a quick look and let me know what colour is going where it would be huuugely appreciated!
Jason
Re: Which wire where?
When i first made that pic i got one of the oil sensors wrong - the only oil sensor is the one on the back of the cylinder head!
The 3 senders around the thermotime switch are all water sensors.
Of the 3 wires you have the important one is white/blue and that tells the 16v 'ECU' the engine is warming up and adjusts the timing to suit; according to the VW KR workshop manual this should go to the sender closest to where i labeled 'warm up reg'. The other 2 wires can go on either of the other 2 senders.
As standard the oil sender on the back of the cylinder head is not used
I think that makes sense - will read it again in the morning after i've sobered up (again!!)
The 3 senders around the thermotime switch are all water sensors.
Of the 3 wires you have the important one is white/blue and that tells the 16v 'ECU' the engine is warming up and adjusts the timing to suit; according to the VW KR workshop manual this should go to the sender closest to where i labeled 'warm up reg'. The other 2 wires can go on either of the other 2 senders.
As standard the oil sender on the back of the cylinder head is not used
I think that makes sense - will read it again in the morning after i've sobered up (again!!)
VW Scirocco 16V GTX, Kamei X1 and a half
Re: Which wire where?
Hi Mate,
Did you have a chance to look at all? The whole head has been taken off and is waiting for the garage to put it back in. I should of made a note?!
Do you know what colour wires/connectors go to the folowing -
WUR
CSV
5th Injector
Any TB connectors
Head senders
Any other connectors/senders that connect to the head and everything else that ataches to the head. I found a few pics on vwvortex but could not make out the wiring colours.
Jason
Did you have a chance to look at all? The whole head has been taken off and is waiting for the garage to put it back in. I should of made a note?!
Do you know what colour wires/connectors go to the folowing -
WUR
CSV
5th Injector
Any TB connectors
Head senders
Any other connectors/senders that connect to the head and everything else that ataches to the head. I found a few pics on vwvortex but could not make out the wiring colours.
Jason
